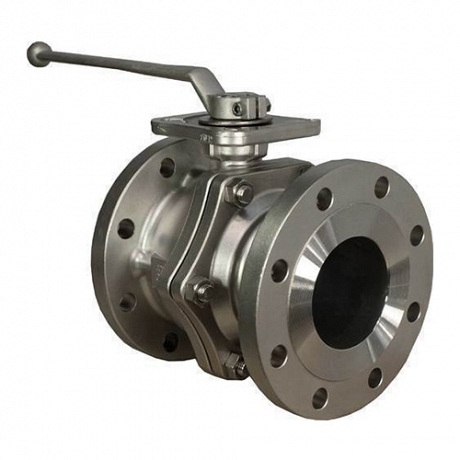

BALL VALVES COMPLIANCE WITH ASME-API STANDARDS
INPATECH offer a wide range of ball valves compliance with API & ASME standards are used in a wide range of industry applications in refineries, petrochemical ,oil & gas , power, paper and pulp industries , sugar industry, steel , food & bevergare processing, plant engineering and construction from famous manufacturers. We are capable of providing a wide variety of material suitable for the delivery of most fluids in sectors mentioned about.
Whether you are looking to ball valve solutions , please contact us . We’ll help you figure out exactly what you need to keep your systems up and running or give you chooses the right applications
BASIC TECHNICAL DATA
Valve types: Trunnion Mounted Ball valves, Double block and bleed valves, Floating Ball valves .
Design: API 6D, API 6A, BS 5351, API 608 ,BS 6755, BS EN 12266
Class: 150 - 2500
Size (NPS): up to 10”
Face to face: ASME B16.10, API 6D
End flange: ASME B16.5, ASME B16.47
Testing: API 598, API 6D
Main materials:
- Carbon Steel : ASTM A216-WCB , or equivalent
- Alloy Steel : ASTM A217-WC6, WC9, C5, C12, C12A or equivalent
Stainless Steel : ASTM A351-CF8, CF8M, CF3, CF3M, CN7M, or equivalent
